Rooftop C&IRooftop C&I

Robust and easy-to-install C&I solar solutions

                Grounding system

                         Tools

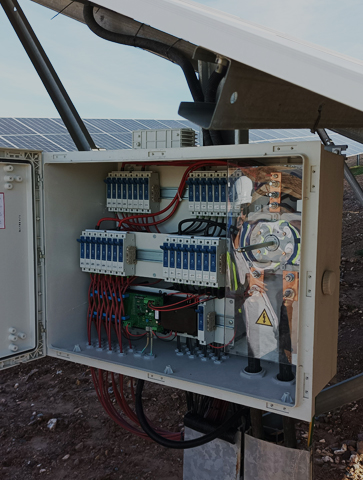

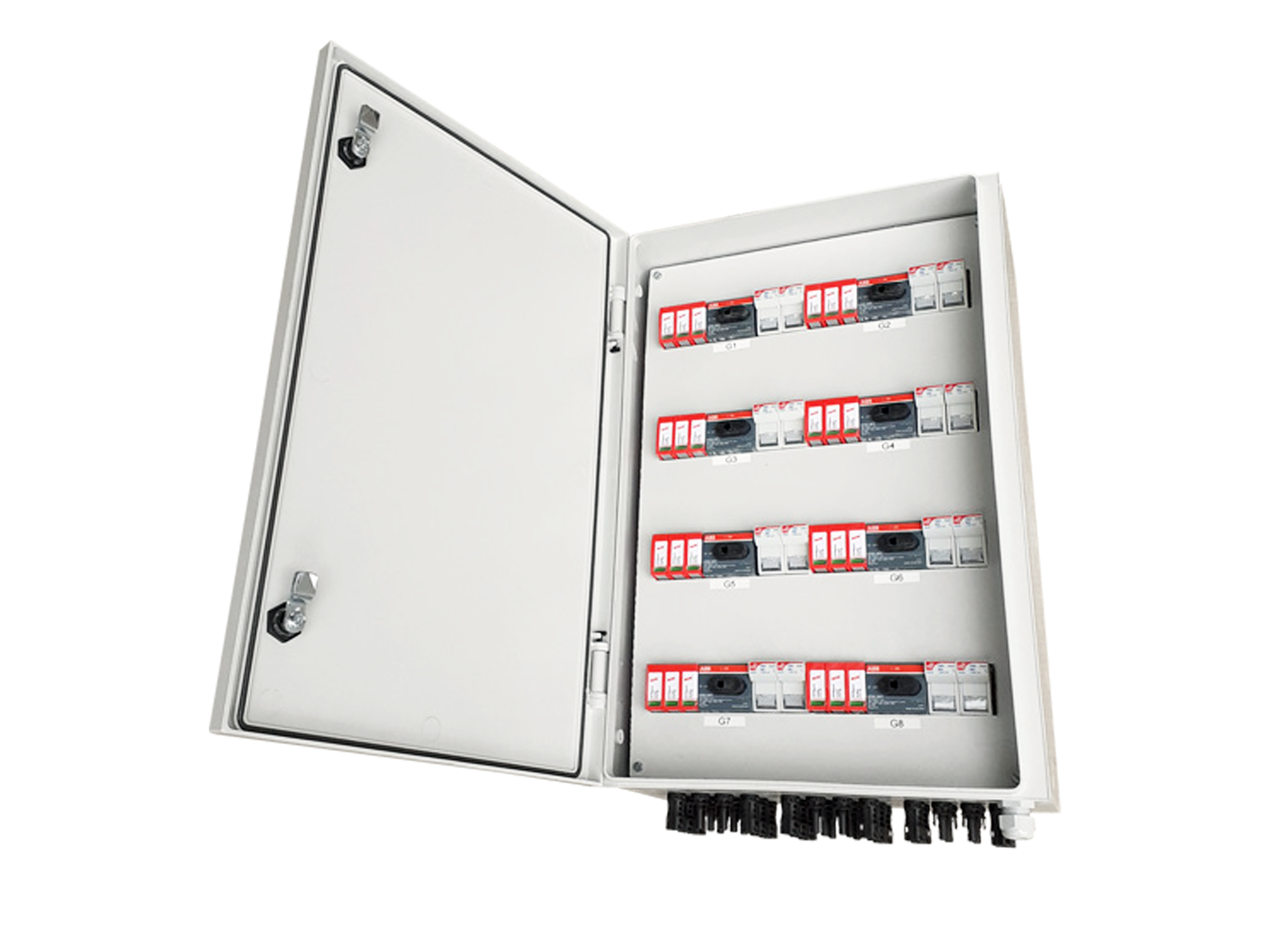

                    DC/AC box

DC/AC box

  • Ease of installation and complete solution (cabinet, protections and
    solar connectors included)

  • Enclosure with our glass reinforced polyester material that gives us
    robustness and durability

  • Same type of cabinet for indoor and outdoor

  • Up to 1000 V

  • Customized cabinets for large projects either with  aesthetic or equipment customizations

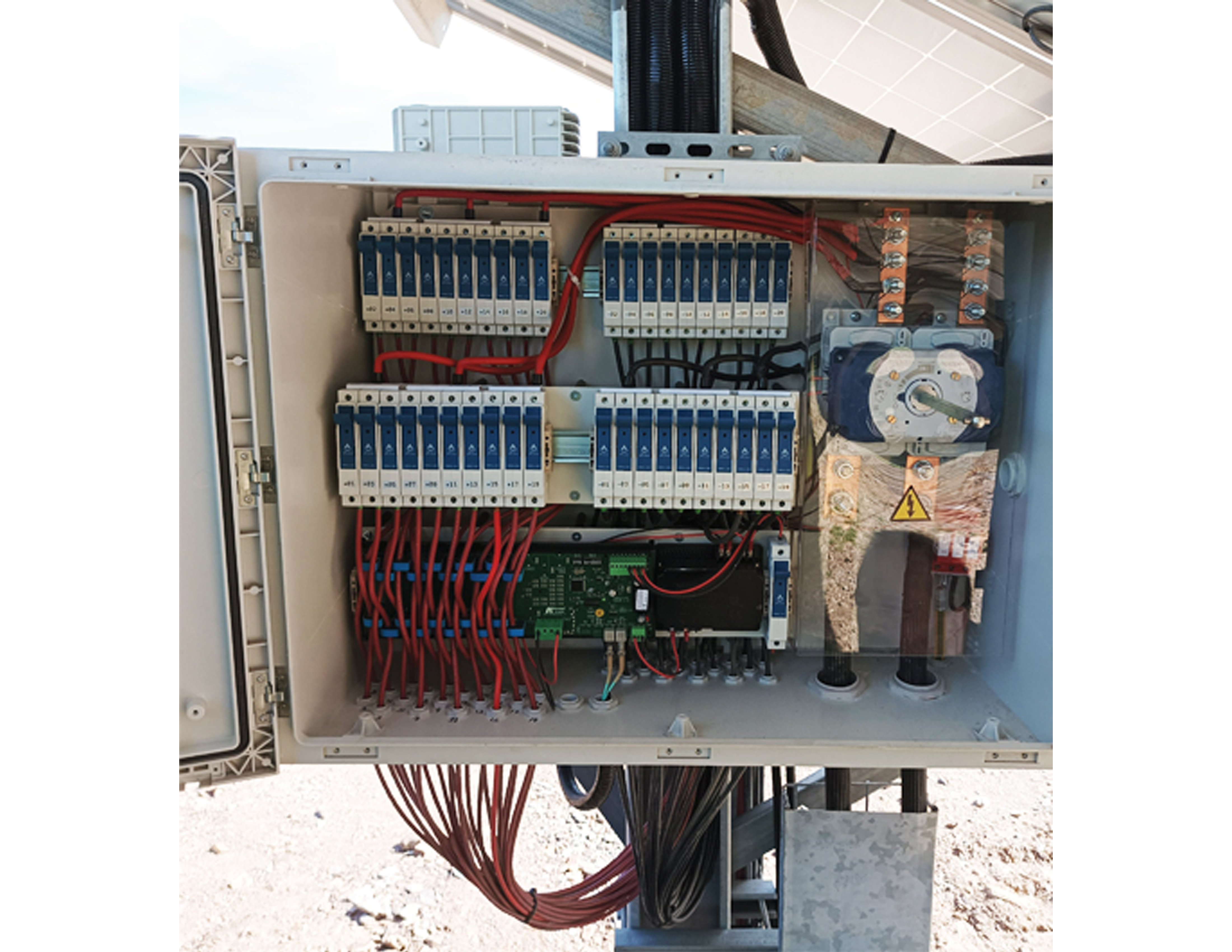

String combiner box

A customizable solution according to project requirements providing watertightness, strong mechanical resistance and UV and corrosion resistance.

  • Strong mechanical shock resistance – IK10
  • IP54 or IP66 rating
  • High resistance to heat and fire
  • Light weight
  • 2 pole pad lockable load break switches
  • 2 pole surge arresters
  • 1500 V DC cabling
  • Monitoring option
  • UV stabilized and corrosion resistant

Monitoring system

The Sicame monitoring system allows the monitoring of
strings to optimize
solar farm energy production.

  • Voltage and temperature measurement,
    switch and surge     arrester
    status monitoring
  • Up to 24 DC inputs
  • Current sensor from 20-45 A

LV lugs

Bimetallic crimping terminals and Aluminium mechanical terminals are essential.



Grounding system


Earthing solar PV systems create a complete circuit by safely connecting any potential leakage of electricity to the ground so that there is no chance of an electric shock or other safety
hazard occurring.

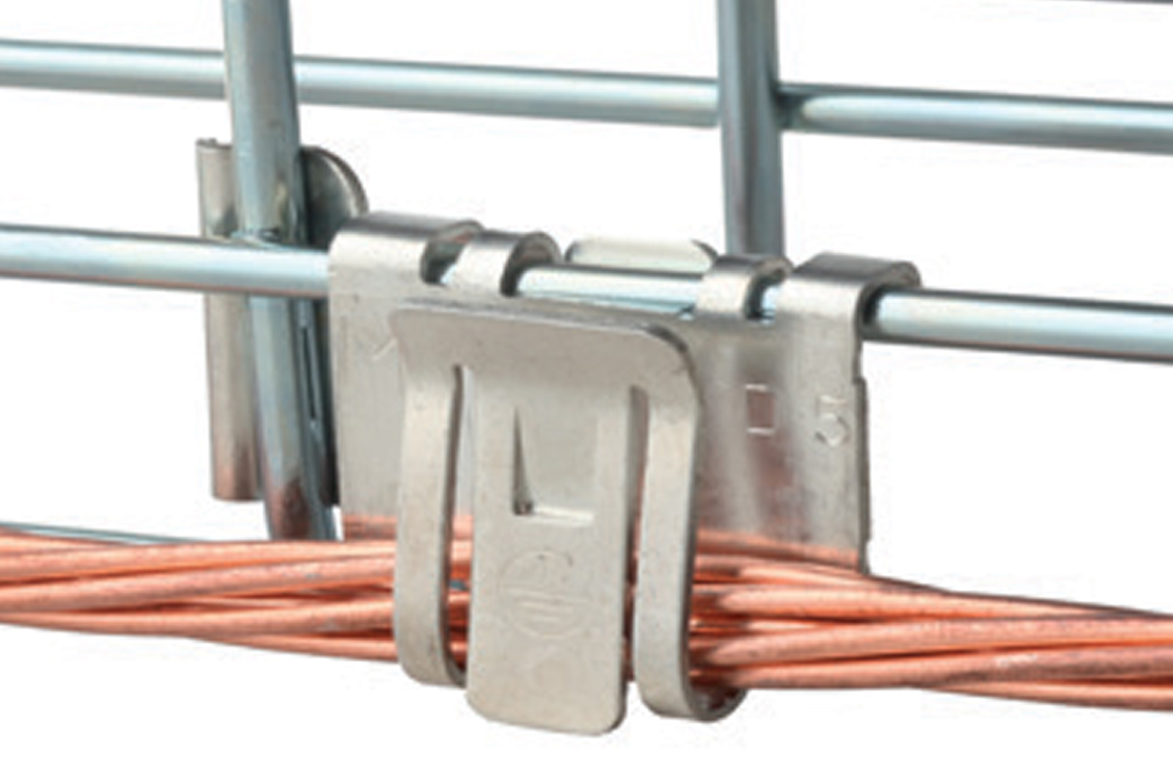

Equipotential grounding
Equipotential bonding clip for uninsulated earthing conductor in basket cable trays or sheet metals.

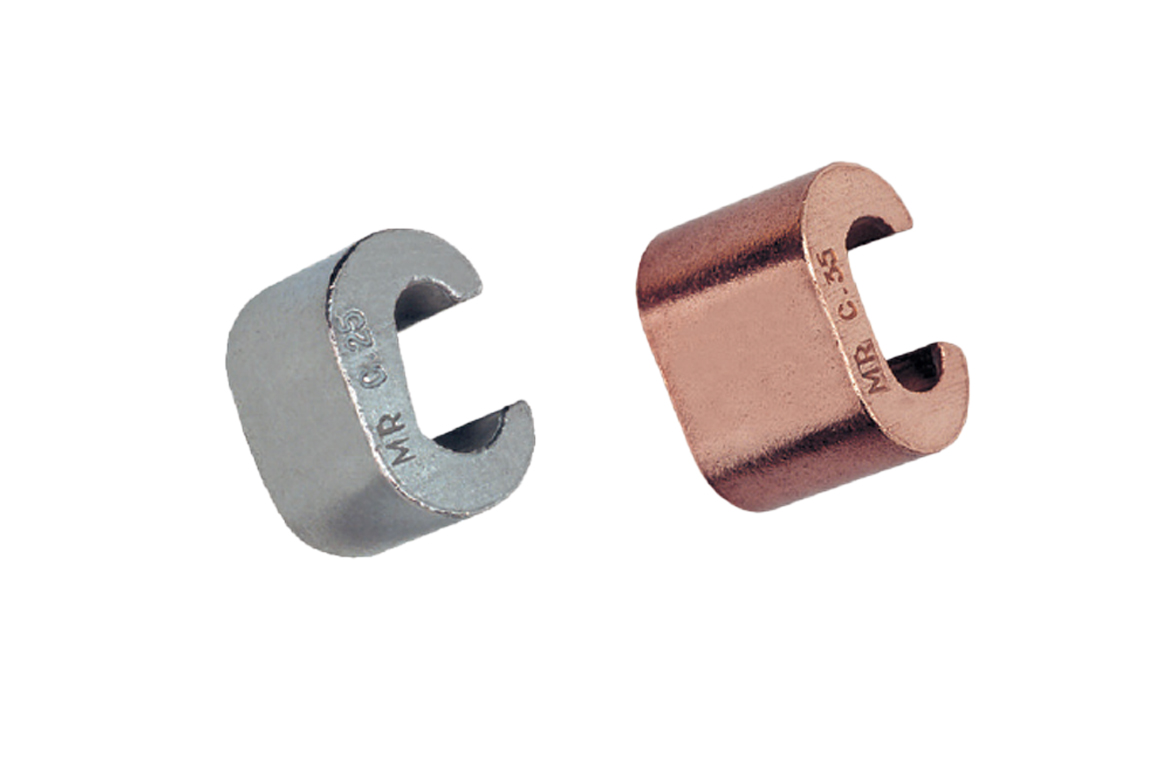

Tap-off copper connectors
Crimping tap made of pure electrolytic copper with a
"C" shape enabling joints and taps of Cu-Cu for overhead and grounding connections without cutting the
main cable.

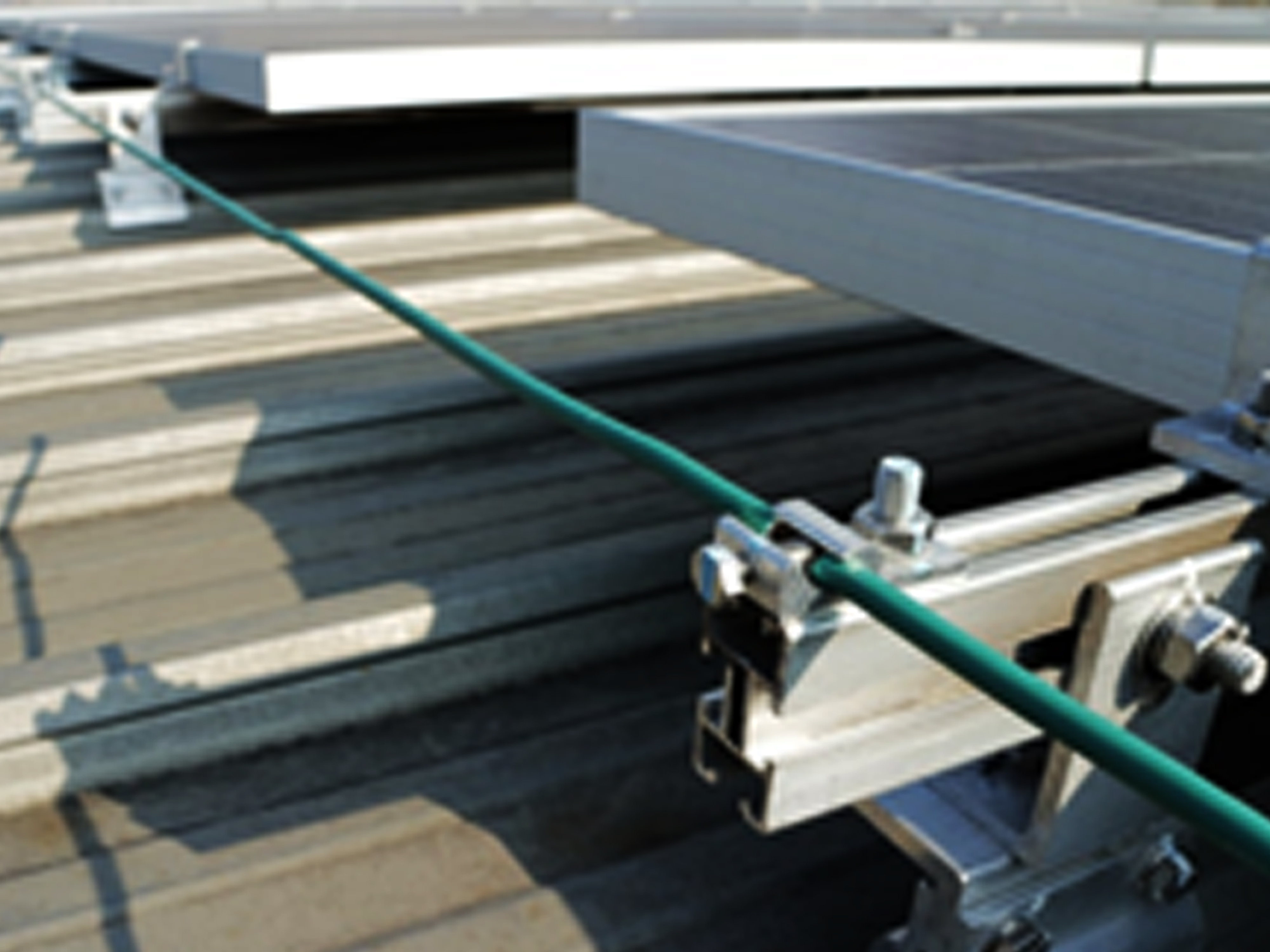

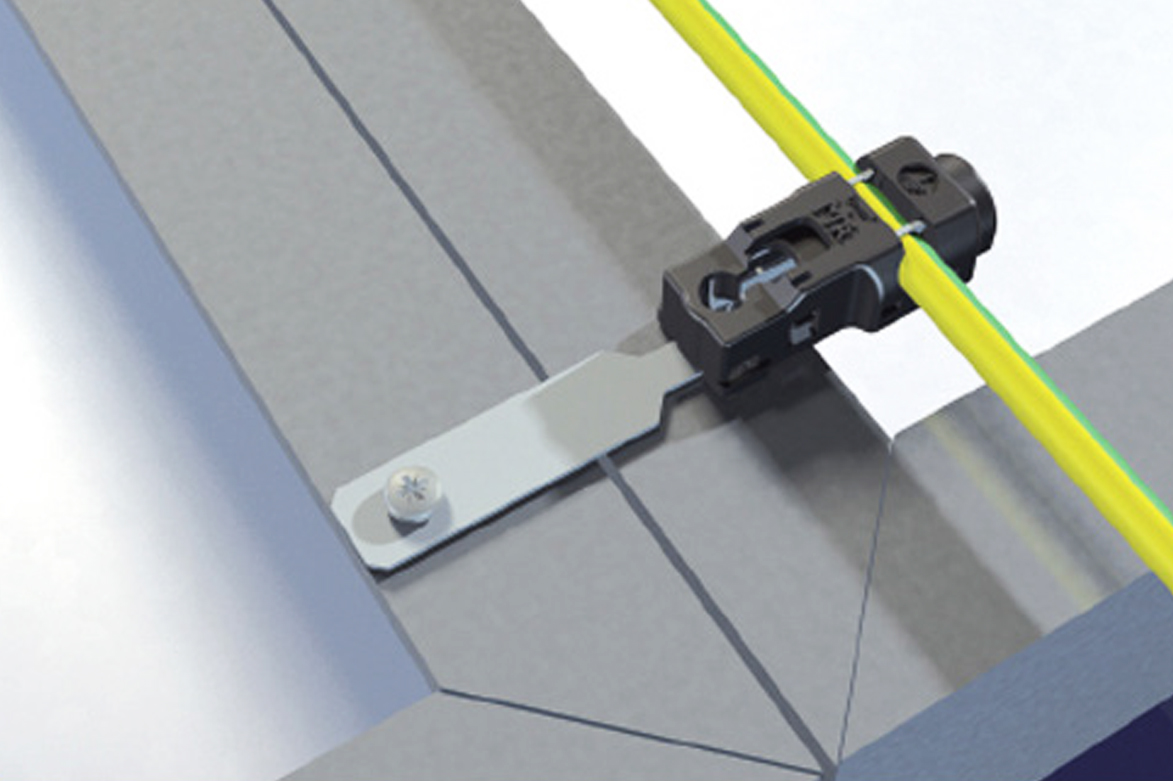

PV modules grounding
Solfil and Solfil + range of connectors offer a convenient solution to most of installation requirements without the need for prior preparation of the equipotential bonding cable.

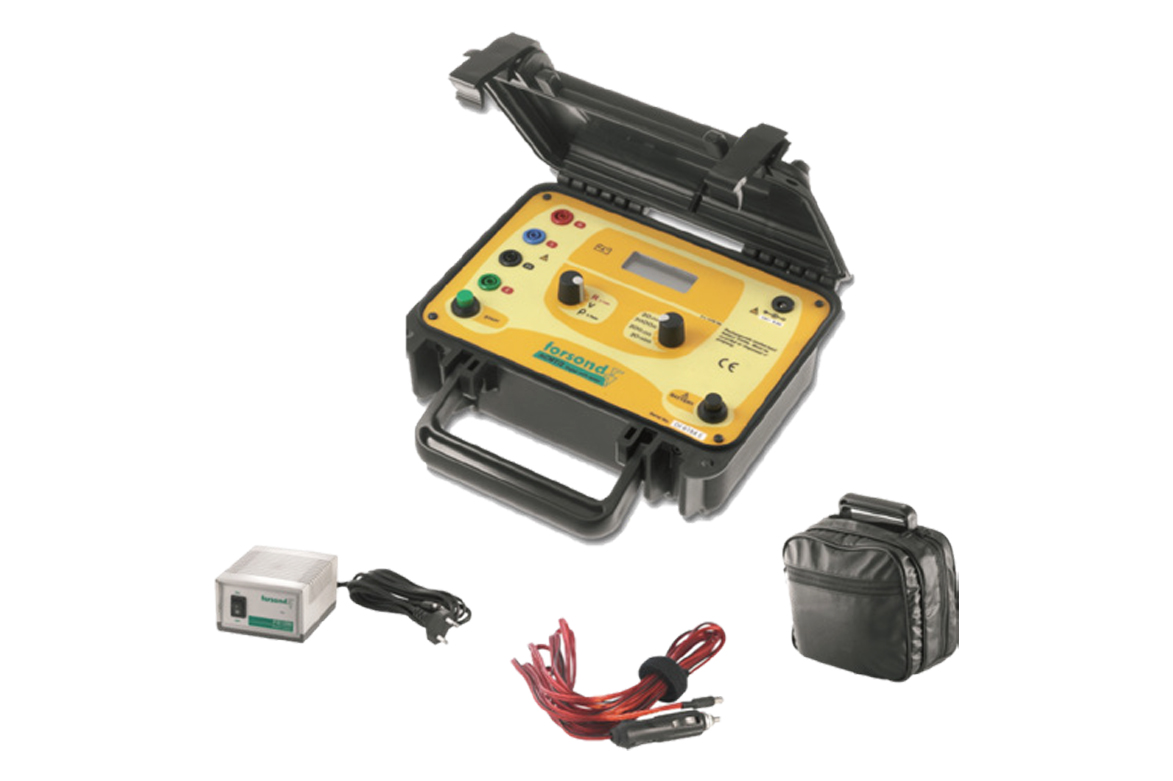

Resistance and resistivity measurement
The equipment is suitable for fast and easy measurement of the grounding resistance to determine the condition of a circuit or component in home, industrial buildings, substations and allows to know the parasitic tensions of the soils too.

Tools
A complete range of tools dedicated to solar solutions

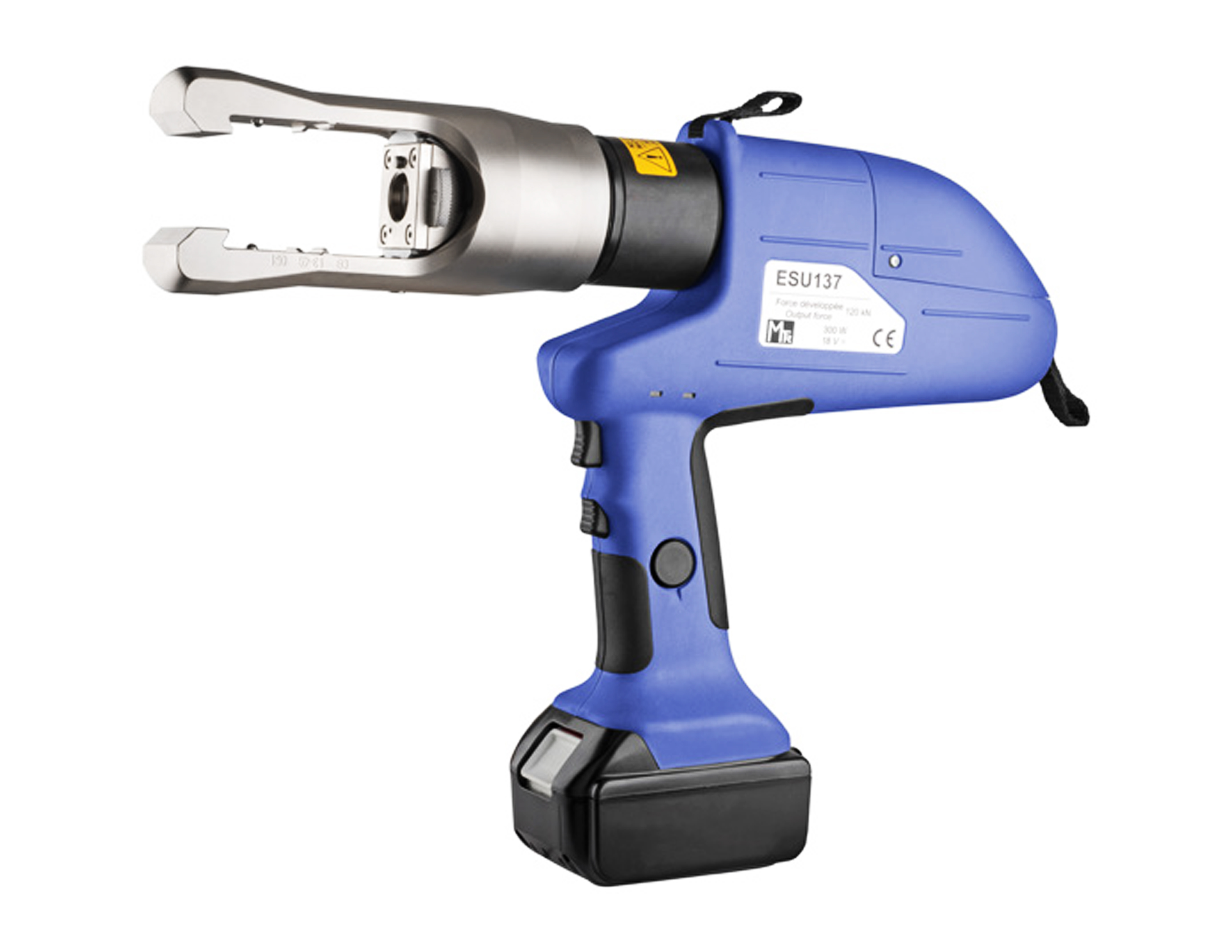

Electro-hydraulic crimping tools

New generation of tool smarter, faster and having more autonomy with the Li-lon battery 18 V 4 Ah.

Hand operated hydraulic crimping tools

U type head according to NF C33-090. This tool features a two stage rapide advance pumping system. The hydraulic body is protected by a neoprene cover. Positive die locking by push button.

Diagonal cutting pliers

  • Insulated diagonal cutting pliers for live working at low voltage
  • Maximum operating voltage:
    1000 V AC - 1 500 V DC
  • Steel tool body. In accordance with DIN ISO 5749
